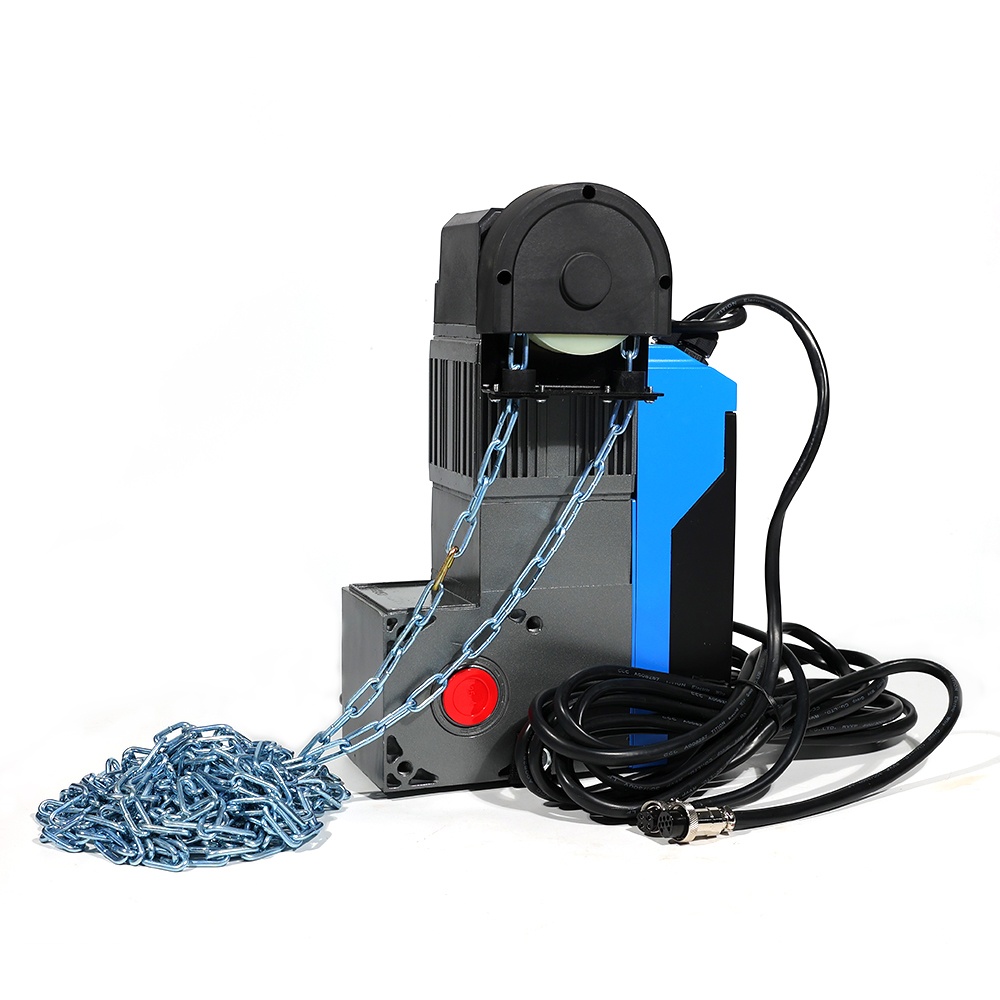

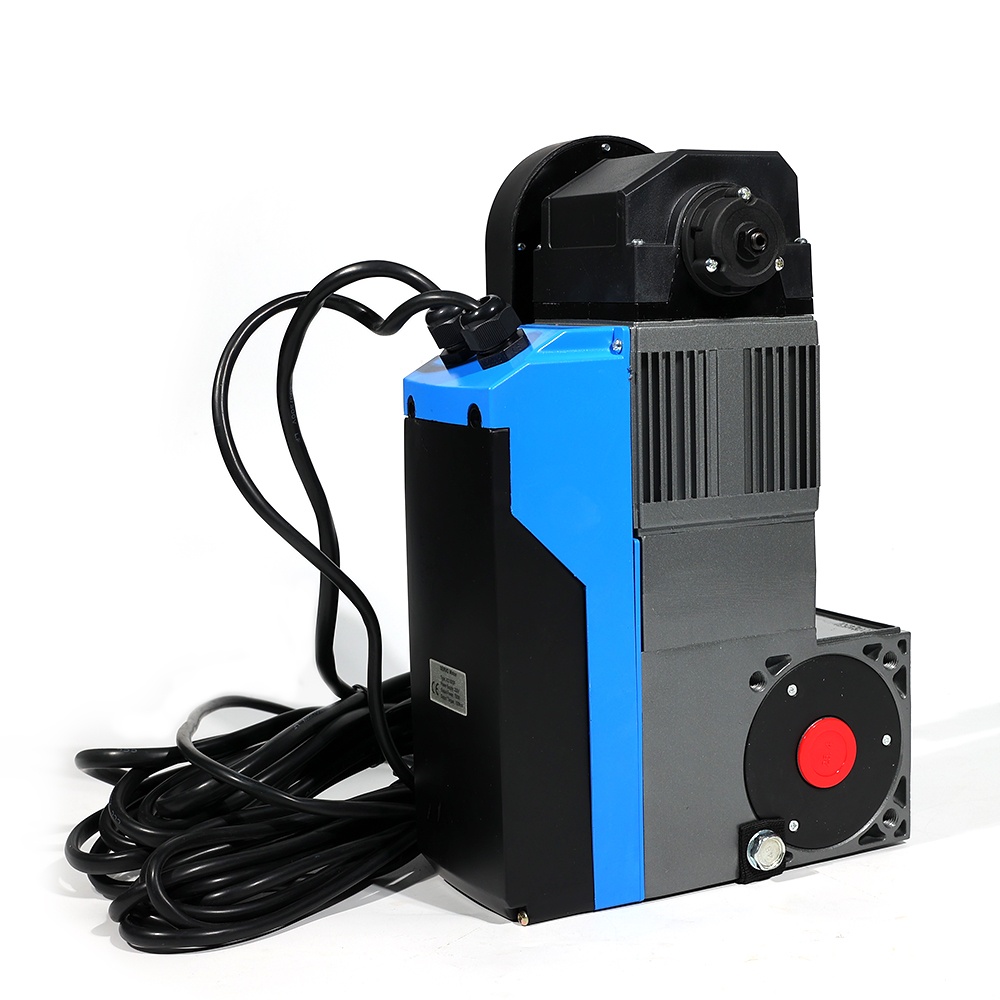

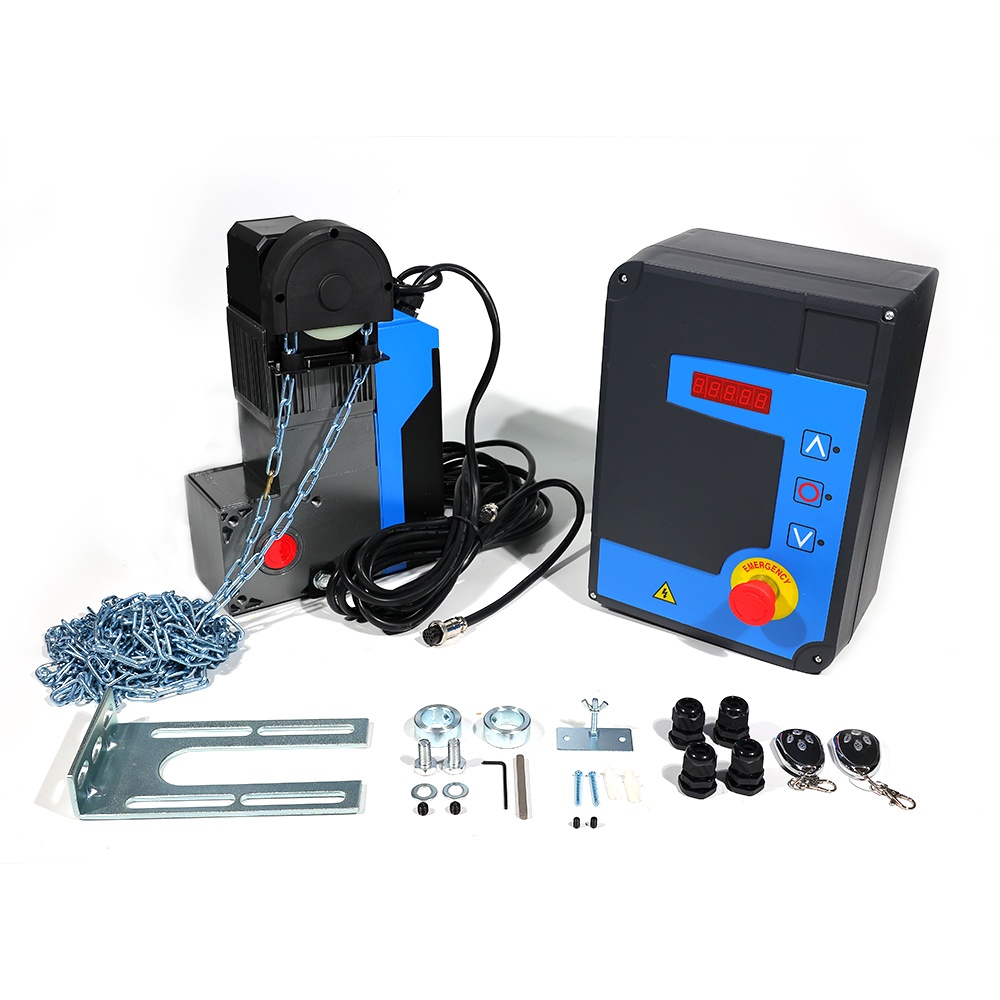

KG100SF
Features：
Servo motor, powerful and efficient.
Soft start and slow stop.
Build-in encoder, electronic limitswitch.
Display function indicate workingsituation.
Running speed is adjustable.
6Overload & overheat protection.
Automatic close and time adjust.
Technical data
| Model | KG100SF |
| Power supply | AC220V |
| Motor power | 750W |
| Max. output torque | 100N.m |
| Rotation speed | 24rpm |
| Output shaft aperture | 25.4mm |
| Environment temperature | -20℃~+45℃ |

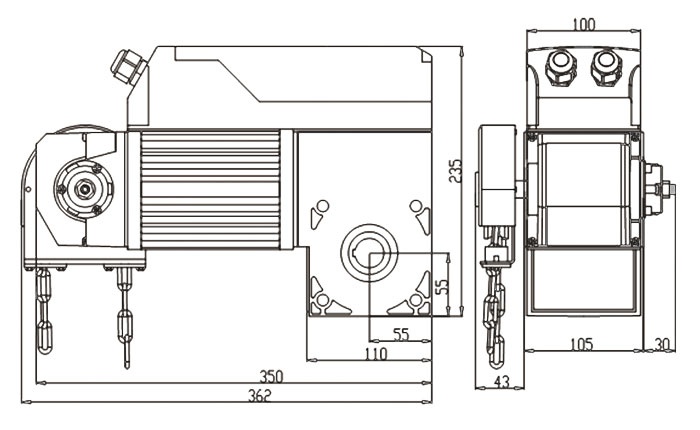

| Dimension | 362*235*178 |
