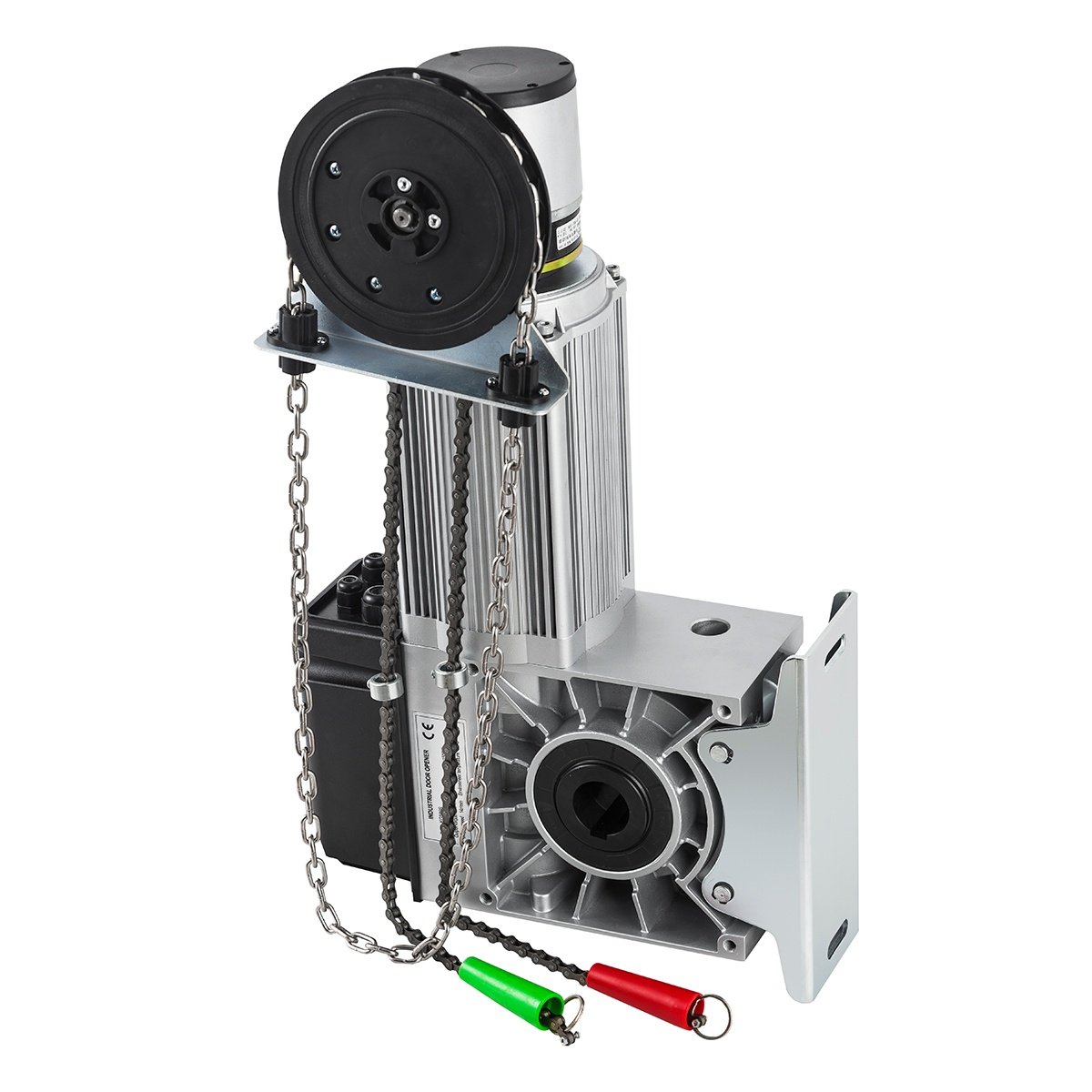

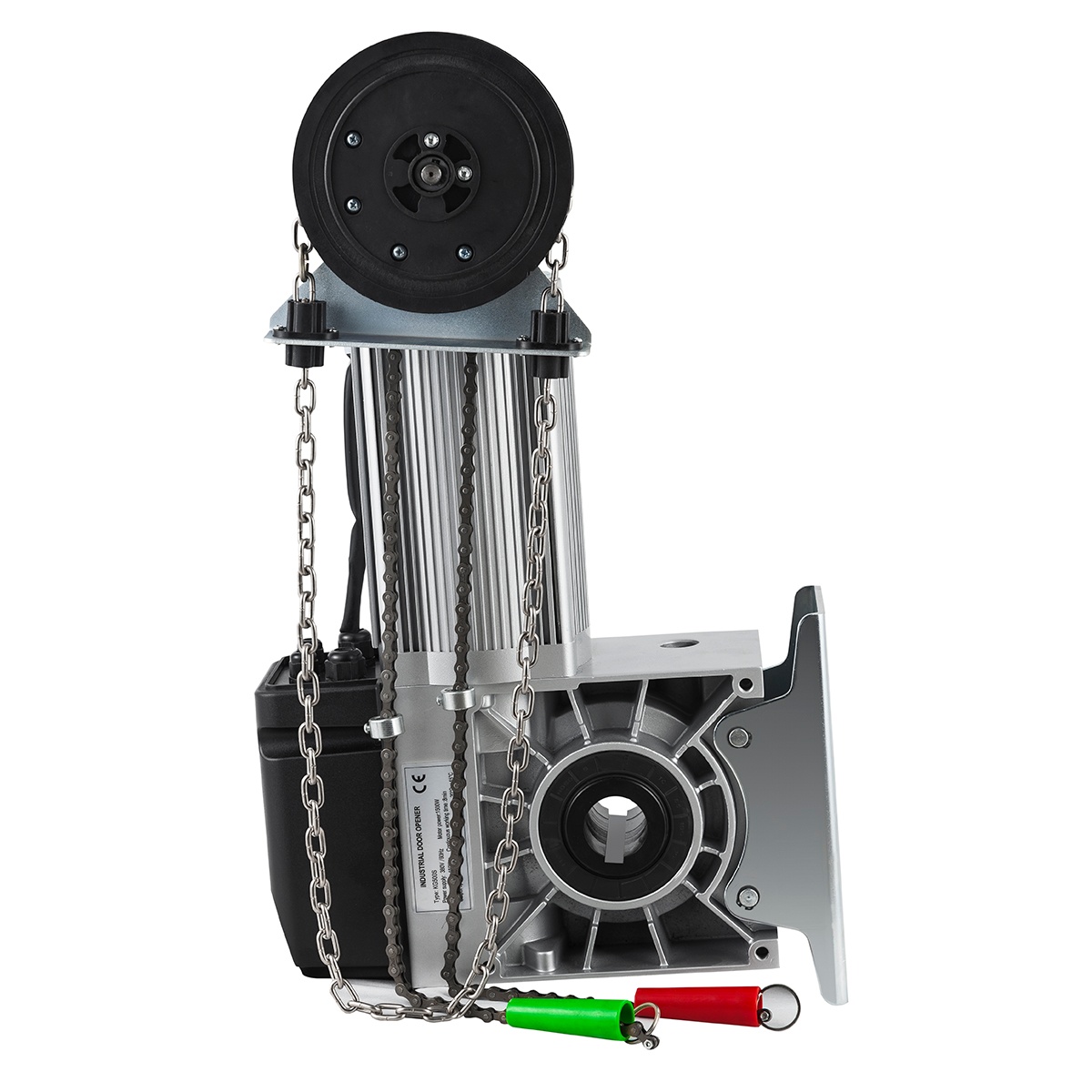

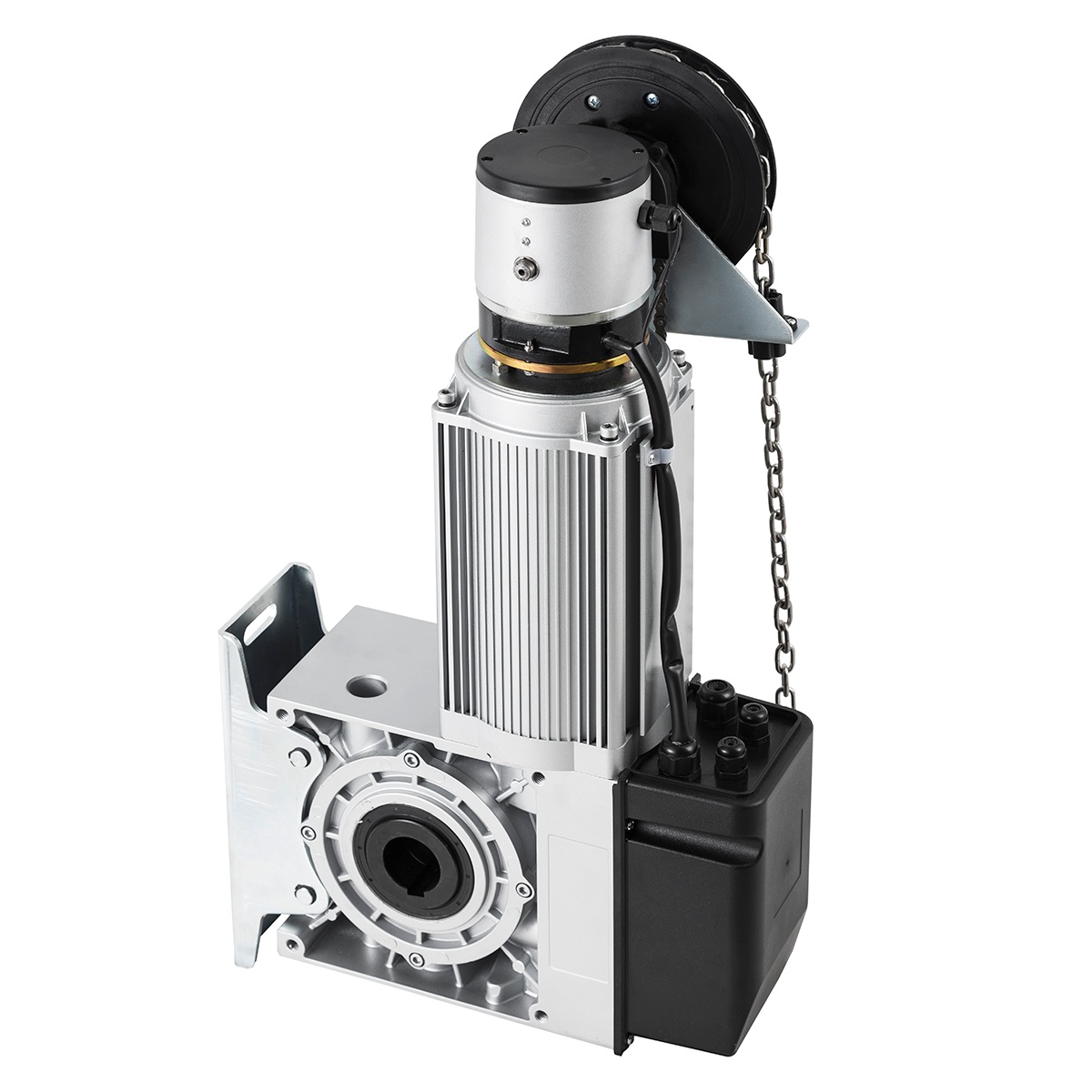

KG500S
Features：
Oil immerged gear reducer.
Mechanical limit switch.
Built-in electromagnetic brake.
Auto-stop when obstruction.
Auto-close function can be set.
Remote control with rolling code 433.92Mhz.
Manual release chain when power supply failure.
Wiring terminals for alarm lamp, infrared photocell, etc.
Technical data
| Model | KG500S |
| Power supply | 380V |
| Motor power | 1500W |
| Output torque | 500N.m |
| Output speed | 12r/min |
| Output shaft aperture | Φ40mm |
| Max.travel distance | 18 Cycles |
| Max.dool size | 100m2 |
